IPS 480*800 4.3 Inch Landscape screenTFT Lcd Module /RGB Interface with Capacitive Touch Panel
Product Details
| Product | 4.3 inch touch LCD display/ Module |
| Display Mode | IPS/NB |
| Contrast ratio | 800 |
| SurfaceLuminance | 380 Cd/m2 |
| Response time | 35ms |
| Viewing angle range | 80 degree |
| Interface PIN | MIPI/33PIN |
| LCM Driver IC | ST-7262F43 |
| Place of Origin | Shenzhen, Guangdong, China |
| Touch Panel | YES |
Touch Data
| Principle | Projective |
| Transparency | ≥85% |
| Haze | ≤3% |
| Hardness | ≥6H |
| Screen | TX12*RX7 |
| Touch point | 5 |
| Structure | G+F+F |
| Outline size | 105*64.2*1.15 mm |
| VA size | 95.04*53.86 mm |
| Driver IC | CST-L26/GT-911 |
| Interface | IIC |
| Connected type | Socket |
| Pin NO. | 6 |
| Pin pitch | 0.5 mm |
| Operating system support | Linux, Android |
| Input voltage | 3.3V |
| Operating temperature range | -20 -- 70 °C |
| Storage Temperature range | -30 -- 80°C |
Dimensional outline(As shown in the following figure):
TP drawing
Product Display
1. This 4.3-inch LCD display belongs to the wide temperature series, mainly RGB interface, mainly IPS
2. This model is a capacitive touch screen, materials and methods, chips and other parameters can be customized according to requirements
Product Application
About Us
Shenzhen Allvision Optoelectronics Technology Co., Ltd. was established in 2014,focuses on theR&D, production and sales of TFT color LCD screens and modules and LCD screen touch.We have our own modern automatic production equipment and professional management, research and development and production team., mainly offer the customization service to the customers who need small and medium size color LCD modules.

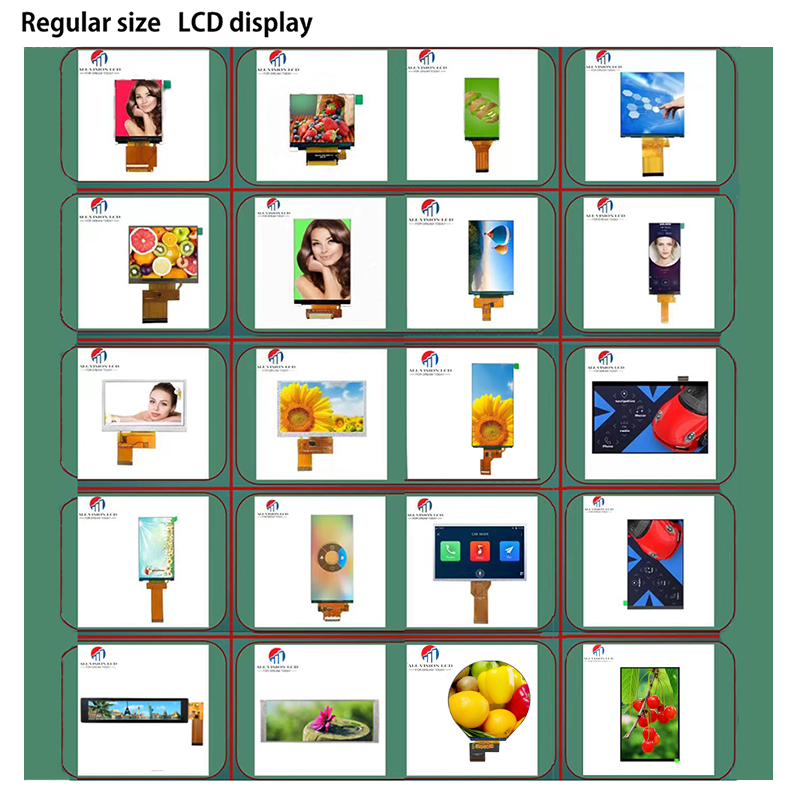

Our company’s main products are 2.0”/2.31”/2.4”/2.8”/3.0”/3.97”/3.99”/4.82”/5.0”/5.5”/…10.4” and other small and medium-sized color LCD modules. Our products are widely used in consumer electronics, financial electronics, communication electronics, intelligent home appliances, instruments and meters, industrial control, automotive electronics, culture, education, sports and entertainment and other industri
Why choose us?
1. Quality
Quality always first. Almost every buyers will say P&O care about the products quality most.
2. Samples and small MOQ
We will support our customers with cheap samples for test. All the lcds can be ordered from 1 piece.
3. Fast shipping
We have about hundreds of routes shipped all over the world. Our transportation partners work professionally for cost fairness. Usually our goods will arrive within 3 to 7 working days from the date of shipment.
4. Customize
We help different customers with different lcds. Producing by our own lines, we can satisfied our buyers. If you want customize please kindly inquiry us for details.
Our Factory
1. Equipment presentation
2. Production Process
